Troubleshoot

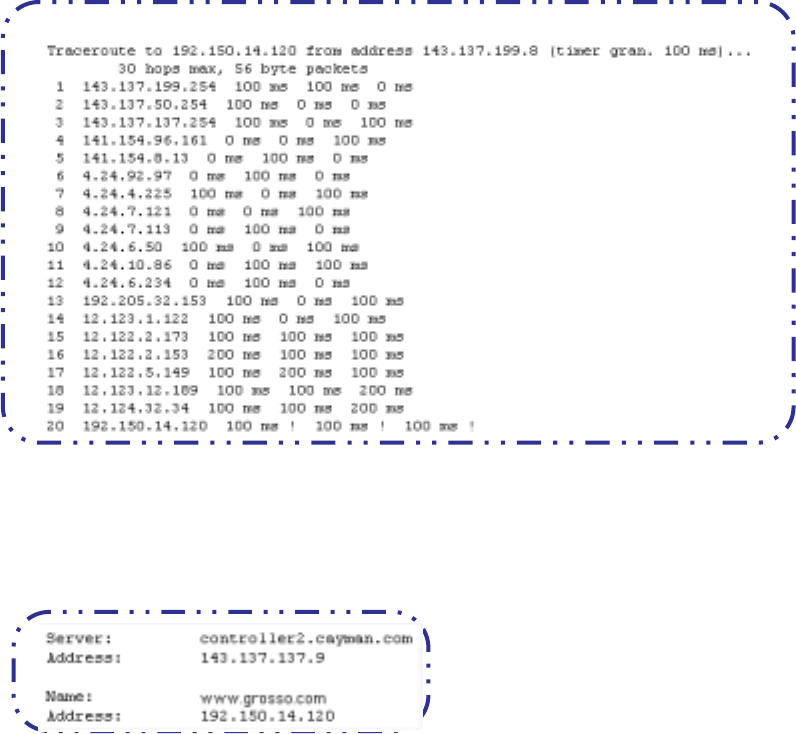

Example: Show the path to the grosso.com site.

Result: It took 20 hops to get to the grosso.com web site.

Step 5 To use the NSLookup capability, type an address (domain name or IP

address) in the text box and click the

NSLookup

button

Example: Show the IP Address for grosso.com

Result: The DNS Server doing the lookup is displayed in the Server: and

Address: ﬁelds. If the Name Server can ﬁnd your entry in its table, it is displayed

in the Name: and Address: ﬁelds.
